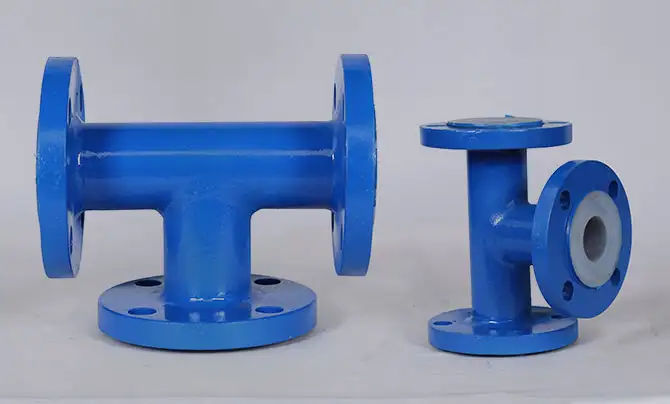

Lined Equal / Un-Equal Tee
BILL OF MATERIAL

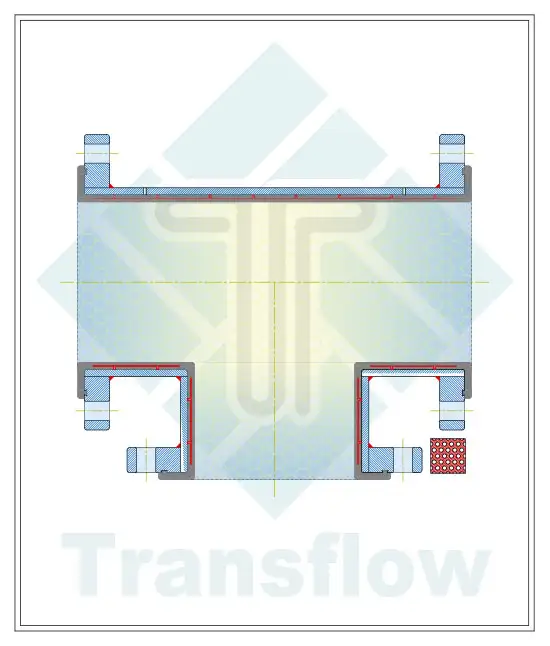

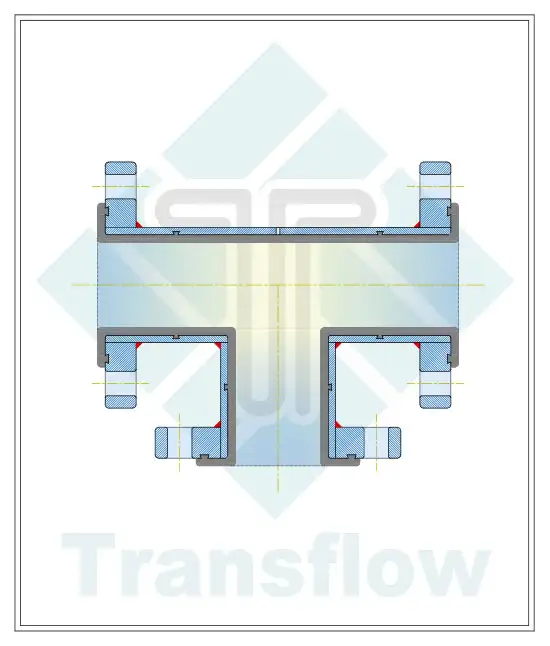

PFA / PP / PVDF Lined Equal Tee
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Equal Tee Cast Housing | Ductile Iron | ASTM A-395 60 / 40 / 18 | ANSI B 16.42 / ANSI B 16.5 |
| 2 | Polymer | PFA | ASTM D 4895 | ASTM F1545:15a |
| P.P. | ASTM D 4 101 | |||
| PVDF | ASTM D 3222 | |||
| HDPE | ASTM D 3350 |

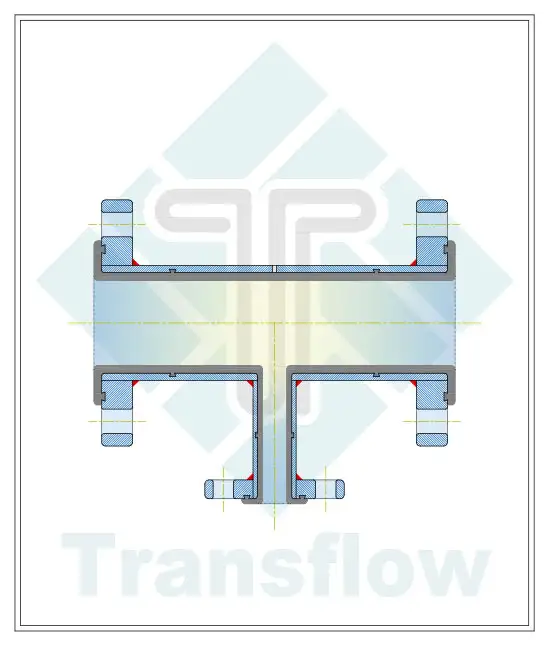

PFA / PP / PVDF Lined Equal Tee
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | RED. Tee Cast Housing | Ductile Iron | ASTM A-395 60 / 40 / 18 | ANSI B 16.42 / ANSI B 16.5 |
| 2 | Polymer | PFA | ASTM D 3307 | ASTM F1545:15a |
| P.P. | ASTM D 4101 | |||
| PVDF | ASTM D 3222 | |||
| HDPE | ASTM D 3350 |
Tee Equal Gad
Tee Equal V2 Gad
