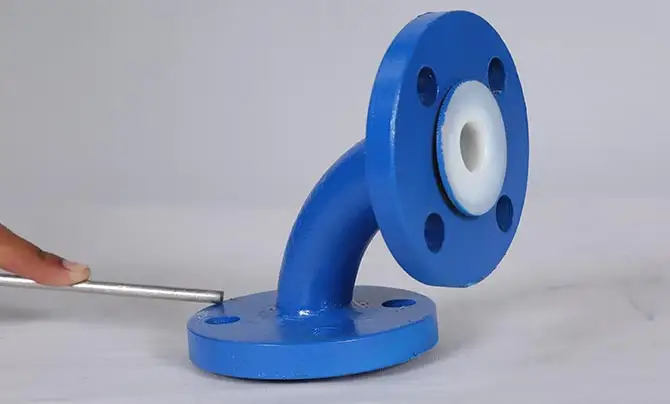

Lined Elbow 45° / 90°
Lined Elbow 45° / 90°
BILL OF MATERIAL

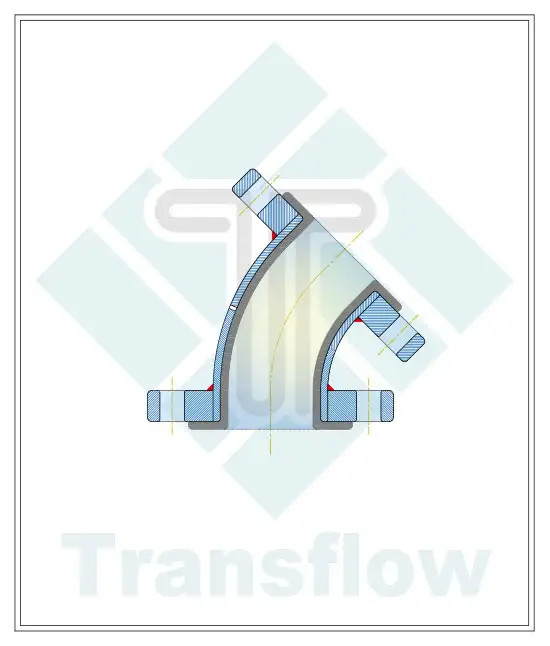

PTFE Lined 45° Elbow
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Elbow 450 Housing | ASTM A-234 GR.WPB | ASTM A-234 GR.WPB SCH-40 | As Per Manufacturer STD. |
| 2 | Flange (Slip-On) | Carbon Steel | ASTM A-105 / IS 2062 GR.A | ANSI B 16.5 150 Class |
| 3 | Polymer | PTFE | ASTM D 4895 | ASTM F1545:15a |

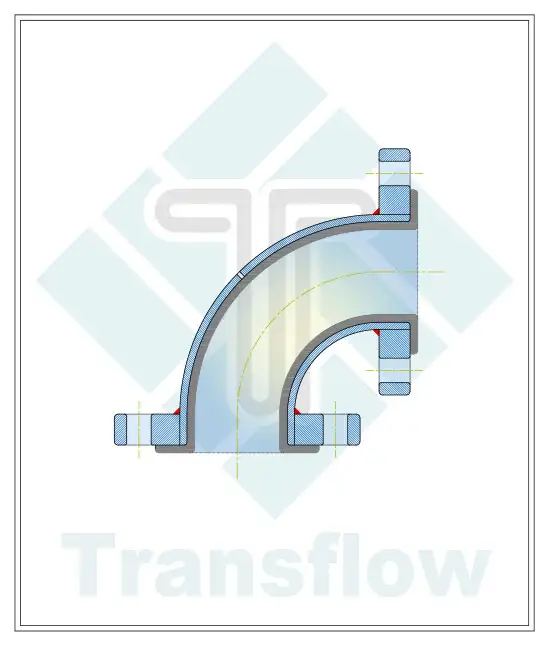

PTFE Lined 90° Elbow
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Elbow 900 Housing | ASTM A-234 GR.WPB | ASTM A-234 GR.WPB SCH-40 | As Per Manufacturer STD. |
| 2 | Flange (Slip-On) | Carbon Steel | ASTM A-105 / IS 2062 GR.A | ANSI B 16.5 150 Class |
| 3 | Polymer | PTFE | ASTM D 4895 | ASTM F1545:15a |
PFA / PP / PVDF / HDPE Lined 45° Elbow
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Elbow 450 Cast Housing | ASTM A-234 GR.WPB | ASTM A-395 60 / 40 / 18 | ANSI B 16.42 / ANSI B 16.5 |
| 2 | Polymer | PFA | ASTM D 3307 | ASTM F1545:15a |
| P.P. | ASTM D 4101 | |||
| PVDF | ASTM D 3222 | |||
| HDPE | ASTM D 3350 |
PFA / PP / PVDF / HDPE Lined 90° Elbow
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Elbow 900 Cast Housing | Ductile Iron | ASTM A-395 60 / 40 / 18 | ANSI B 16.42 / ANSI B 16.5 |
| 2 | Polymer | PFA | ASTM D 3307 | ASTM F1545:15a |
| P.P. | ASTM D 4101 | |||
| PVDF | ASTM D 3222 | |||
| HDPE | ASTM D 3350 |
