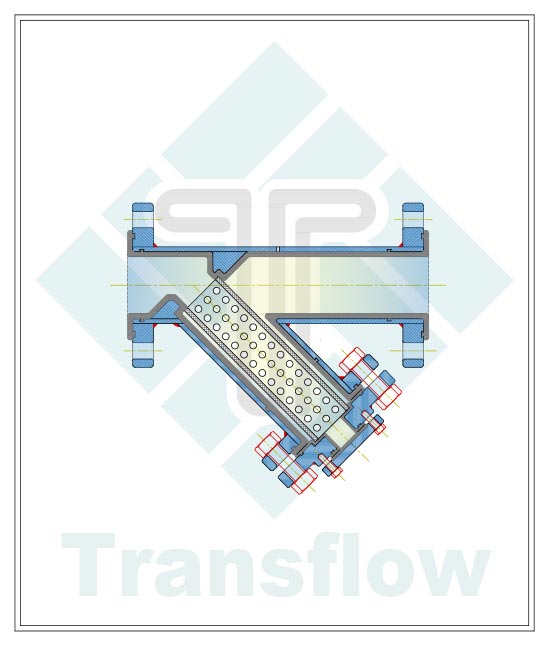

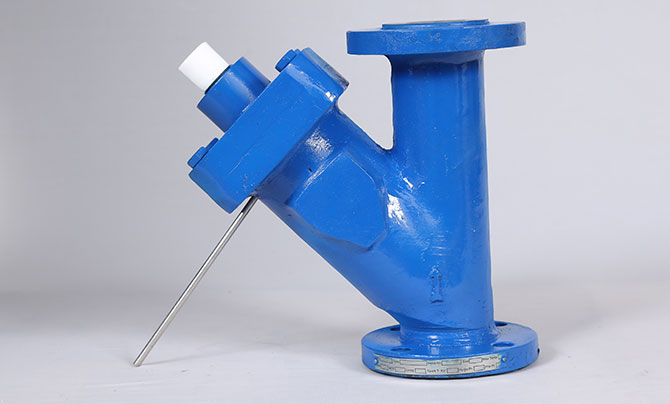

Lined Y-Type Strainer
Lined Y-Type Strainer
BILL OF MATERIAL
| Part No. | Item | Material | Spec. / STD | Dimensional STD |
|---|---|---|---|---|
| 1 | Seamless Pipe | Carbon Steel | ASTM A-106 GR B SCH 40 / 30 | ANSI B 36.10 |
| 2 | Flange (Flat Face) | Carbon Steel | ASTM A-105 / IS 2062 GR.A | ANSI B 16.5 150 Class |
| 4 | Resin | PTFE | ASTM D 3307 | ASTM F1545:15a |
| PP | ASTM D 4101 | |||
| PVDF | ASTM D 3222 | |||
| HDPE | ASTM D 3350 |
